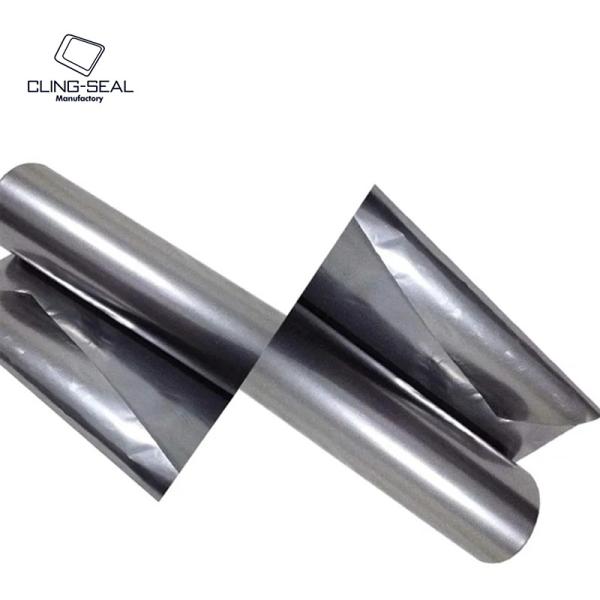

3mm Thick Sealing Gasket Graphite Sheet Chemical Resistant

  • 1
  • 2
  • 3

Brand Name : CLINGSEAL

Model Number : CSG80

Certification : ISO,SGS

Place of Origin : CHINA

MOQ : 500kg

Price : 2.2USD PER KG

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500Tons per month

Delivery Time : 20 days

Packaging Details : pallet/wooden case

Grade : Industrial Grade

Type : Flexible Sheet

Application : gaskets

C content (%) : 99.9%

Thickness : Customers' Demand

Material : Graphite,High pure graphite

Dimensional Stability : Low Thermal Expansion

Customization : Tailored Dimensions/Shapes

Machinability : Ease of Cutting/Shaping

Contact Now

Products Description

3mm Thick Graphite Sealing Sheets

Flexible graphite materials include sheets, foils, papers, tapes, and strips. Manufactured from natural flake graphite through chemical intercalation and high-temperature exfoliation, these materials form worm-like structures with approximately 0.003g/cm³ density. The binder-free expanded graphite is calendared into rolls, offering:

  • 99%+ purity
  • Chemical resistance
  • Radiation tolerance
  • Thermal stability (-200°C to +650°C)
  • Compression recovery
  • Self-lubricating properties
  • Gas-tight sealing

3mm Thick Sheet Features:

  • Ideal for high-temperature insulation applications
  • Provides enhanced sealing performance in low-pressure systems
  • Available in pure graphite or metal-reinforced composites

Product Applications:

  1. Custom packing rings for pumps and valves
  2. Die-cut gaskets for specialized equipment
  3. Thick insulation pads for high-temperature environments

Standard Specifications:

  • Sheet Thickness: 3.0mm (other thicknesses: 1.0-5.0mm)
  • Sheet Size: 1000x1000mm / 1500x1500mm
  • Roll Dimensions:
    • Width: 1000mm / 1500mm
    • Length: 30m / 50m / 80m
  • Density: 0.8-1.25g/cm³
    Custom sizes and thicknesses available upon request
Item Standard Value
C concentration 99%
S concentration <1000ppm
chlorine concentration <45ppm
tensile strength 4.5MPa
compressibility >40%
recovery >10%
Temperature -200ºC-600ºC
Pressure 20MPa
Terence of Thickness -0.04mm~+0.04mm
Terence of Dimension In accordance with your Gasket size
Terence of Density -0.06~g/cm3+0.06gcm3

Grades Separate :JB/T53392-1999
Mechanical Data Qualified product Top Grade Superior Grade
Density Tolerance
g/cm3		 <0.4 ±0.10
±0.05
≥0.4 ±0.07
Tensile Strength MPa ≥3.2 ≥4.5 ≥5.0
Compression Ratio % 35~55
Rebound Rate % ≥9 ≥11 ≥12
Stress relaxation rate % ≤10
Ash % ≤6.0 ≤3.0 ≤1.0
Heat loss on ignation % 450ºC ≤1.0 ≤0.5
600ºC ≤20 ≤15

Sulphur content 		≤1500ppm ≤1000ppm ≤600ppm

Chloride content		 ≤100ppm ≤50ppm ≤20ppm

3mm Thick Sealing Gasket Graphite Sheet Chemical Resistant

3mm Thick Sealing Gasket Graphite Sheet Chemical Resistant

3mm Thick Sealing Gasket Graphite Sheet Chemical Resistant
